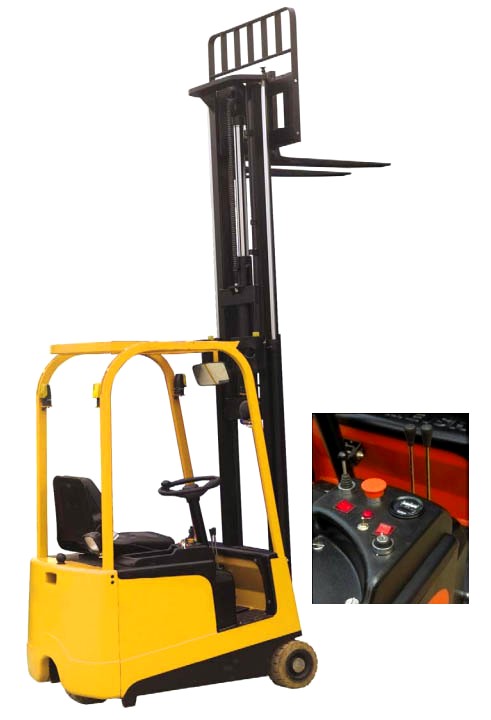

öâ¿Ãì¤ÅÔ¿ä¿¿éÒ  ¢¹Ò´àÅç¡ Mini Electric Forklift


ÃÒÂÅÐàÍÕ´¼ÅÔµÀѳ±ìÍÒ¨ÁÕ¡ÒÃà»ÅÕè¹á»Å§â´ÂÁÔä´éá¨é§ãËé·ÃÒºÅèǧ˹éÒ



ÃÒÂÅÐàÍÕ´

öâ¿Ãì¤ÅÔ¿ä¿¿éÒ ¢¹Ò´àÅç¡ ¤ÅèͧµÑÇ ËÁعä´éÃͺµÑÇ Â¡ÊÙ§ 3.2 m
ÃѺ¹éÓ˹ѡ 500,750,1000 KG

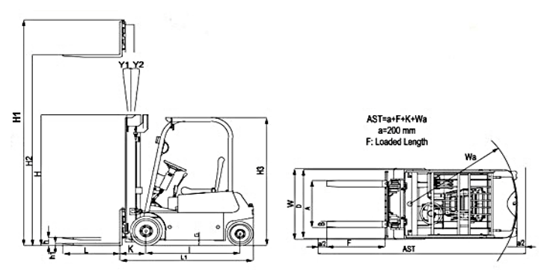

Model ►

 CPDM 50 CPDM 75 CPDM 100
Capacity Q Kg 500 750 1000
Load Center C mm 400
Lifting Height H2 mm 3200
Free Lifting Height h mm 1600
Tilting Angle Y1/Y2 2"/5"
Fork Length L mm 800
Fork Width B mm 100
Fork Width A mm 220-680 (adjustable)
Side Shift a/2 mm Left / Right 100
Min.Turning Radius Wa mm 1100 1260 1350
Lifting Speed m/min 84 / 127
Lowering Speed m/min adjustable
Mast Height h mm 1900
Max Lifting Height H1 mm 3600
Safe Guard Height H3 mm 1900
Wheel Base mm 860-940
Distance Front Between Wheels mm 660
Min.Clearance to the Ground G mm 85 90
Traveling Speed(with/without load) m/min 6.5/7.8 6.5/7.3 6.5/7.0
Gradeability (*) 8
Battery Ah/V 210/24 280/24 385/24
AST mm 2365
Driving Motor KW 2
Pump Motor KW 2.8
Front Wheels Ø 267 x 127
Rear Wheels Ø 267 x 127
Overall length L1 mm 1260
Overall Width W mm 820 820 900
Overall height H mm 2100
Net Weight kg 1250 1380 1550
1000mm Fork is availiable.
Warranty 1 Year
