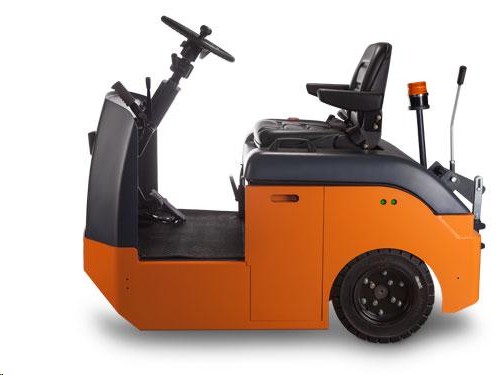

öÅÒ¡¨Ù§ä¿¿éÒ Electric Tow Tractor XT-40


ÃÒÂÅÐàÍÕ´¼ÅÔµÀѳ±ìÍÒ¨ÁÕ¡ÒÃà»ÅÕè¹á»Å§â´ÂÁÔä´éá¨é§ãËé·ÃÒºÅèǧ˹éÒ




ÃÒÂÅÐàÍÕ´

öÅÒ¡¨Ù§ä¿¿éÒ ÍصÊÒË¡ÃÃÁ Ẻ ¹Ñ觢Ѻ ºÑ§¤Ñºáºº¾Ç§ÁÒÅÑÂ
¹éÓ˹ѡÅÒ¡ 4000Kg
ÃØè¹ãËÁè New model

  •   ÃÕÇÔÇ Ã¶ÅÒ¡¨Ù§ä¿¿éÒ ÃØè¹ XT-40 Tow tractor

    • Model ►

    		 XT 40
    Power supply   Battery
    Operating Type   Sit-on
    Max. Pulling (3min Rating) N(kgf) 4000(400)
    Rated Pulling (60min Rating) N(kgf) 1000(100)
    Traction Weight (60min Rating) Kg 4000
    Tyres Quantity Front/Rear   1/2x
    Travel Speed - without load km/h 13
    Travel Speed - with load km/h 8
    Overall Length - with hook mm 1728
    Overall Length - without hook mm 1592
    Front Overhang mm 266
    Rear Overhang mm 136
    Overall Width mm 858
    Overall Height mm 1245
    Turn Radius mm 1447
    Hook Length mm 136
    Hook Height mm 305/355
    Wheels Base mm 955
    Tread Rear Wheel mm 724
    Ground Clearance mm 85
    Platform Height mm 371
    Total Weight - with battery kg 812
    Total Weight - without battery kg 527
    Tyre Dimension - Front Wheel   3.50-5-6PR
    Tyre Dimension - Rear Wheel   4.00-8-6PR
    Main Brake   Hydraulic
    Hand Brake   Manual

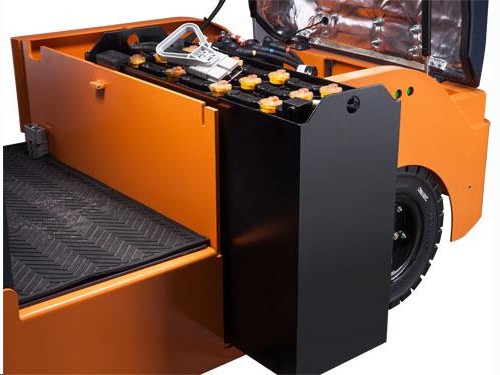

    Battery Voltage/Nominal Capacity V/Ah 24/280
    Battery Weight kg 285
    Driving Motor kw AC 3.0
    Type of Drive Control   Mosfet Control
    Warranty 1 Year
