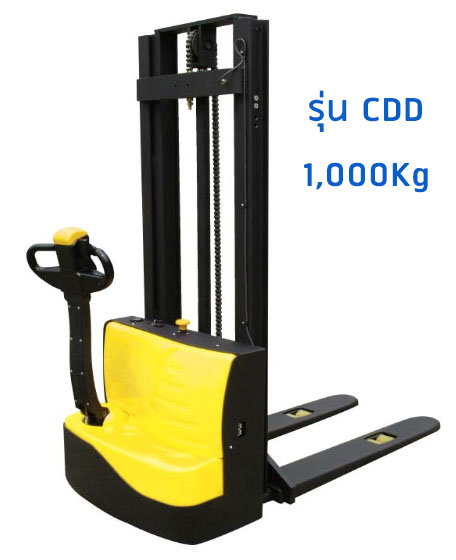

ö¡俿éÒ Full Electric Stacker ÃØè¹ CDD 1000Kg


ÃÒÂÅÐàÍÕ´¼ÅÔµÀѳ±ìÍÒ¨ÁÕ¡ÒÃà»ÅÕè¹á»Å§â´ÂÁÔä´éá¨é§ãËé·ÃÒºÅèǧ˹éÒ




ÃÒÂÅÐàÍÕ´

ö¡俿éÒ áººà¤Å×è͹俿éÒ áººäÁèÁÕá·è¹Â×¹¢Ñº¢Õè
¡¹éÓ˹ѡ 1,000Kg
à¤Ã×èͧªÒÃì¨ÍÂÙèã¹µÑÇö à¾Õ§àÊÕºÊÒÂà¾×èͪÒÃì¨

Model ►

 CDD10-070
Capacity Kg 1,000
Load Center mm 600
Operating Type Walkie
Wheel Base mm 1150
Wheel Type PU
Wheel quantity Driving wheel/Balance Wheel/
Bearing Wheel		   1/1/4
Standard Lift Height mm 3300
Max Extend Height mm 3685
Mast Extend Height mm 1728
Lowered Fork Height mm 90
Fork Size (length/width/thickness) mm 1220/185/55
Overall Length mm 1733
Overall Width mm 790
Outside Width betweem Forks mm 685
Inside Width betweem Forks mm 315
Min Turning Radius mm 1350
Min Aisle Width for Pallet 800x1200 mm 1914
Min Aisle Width for Pallet 1000x1200 mm 1955
Min Ground Clearance mm 30
Travel Speed,Load/Unload Km/h 3/3.5
Lift Speed,Load/Unload mm/s 130/230
Lowering Speed,Load/Unload mm/s 130/230
Gradient,Load/Unload kg 5/7
Drivng motor/Lift motor/Steering motor   DC0.63/ DC2.0
Brake   Electromagnetic/Regenerative
Controller   Curtis
Battery Voltage/Capacity V/Ah 24V/70Ah
Battery Weight kg 48
Weight with Battery Kg 580
Warranty 1 Year

ÃÒÂÅÐàÍÕ´¼ÅÔµÀѳ±ìÍÒ¨ÁÕ¡ÒÃà»ÅÕè¹á»Å§â´ÂÁÔä´éá¨é§ãËé·ÃÒºÅèǧ˹éÒ
