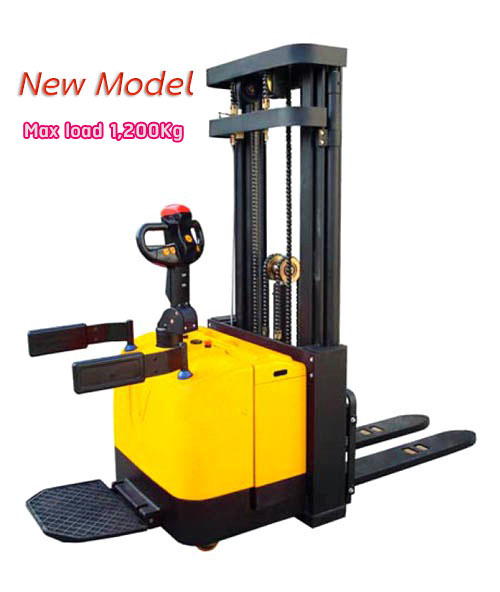

ö¡ÊÙ§ Ẻ ä¿¿éÒ Full Electric Stacker
1200 kg ÃÒ¤Ò»ÃÐËÂÑ´

ö¡俿éÒ áººÂ×¹¢Ñº
ÃÒÂÅÐàÍÕ´¼ÅÔµÀѳ±ìÍÒ¨ÁÕ¡ÒÃà»ÅÕè¹á»Å§â´ÂÁÔä´éá¨é§ãËé·ÃÒºÅèǧ˹éÒ




ÃÒÂÅÐàÍÕ´

ö¡ÊÙ§ stacker ö¡俿éÒẺÂ×¹¢Ñº ¤Çº¤ØÁ´éÇÂä¿¿éÒ·Ñé§Ãкº
  Â¡¢Öé¹-ŧ´éÇÂÃкº ä¿¿éÒ +  à¤Å×è͹·Õè´éÇ 俿éÒ
ÊÒÁÒö¢Ö鹢Ѻ¢Õèä´é á·è¹Â×¹¾Ñºà¡çº à¾×èÍãªé§Ò¹áººà´Ô¹µÒÁä´é
ÃѺ¹éÓ˹ѡä´é 1200kg  ¡ÊÙ§ä´éËÅÒÂÃдѺ ¢Ö鹡ѺÃØè¹
ÃØè¹ãËÁèÅèÒÊØ´ ÃÒ¤ÒäÁèᾧ

¡ÊÙ§ 3.0 / 3.3 / 3.6 m  ¡ä´é 1200Kg

¤Ø³ÊÁºÑµÔ·ÑèÇä»
1.1 Brand   LIFTKAZ
1.2 Model   WS03-12
1.3 Drive Unit   Battery
1.4 Operator Type   Walkie(Platform option)
1.5 Load Capacity Kg 1200
1.6 Load Center c(mm) 600
1.9 Wheel Base y(mm) 1270

ÅéÍ

3.1 Tyre type PU/PU
3.2 Tyre size, operator side mm Ø 248x75
3.3 Tyre size, Load side mm Ø 84x70
3.4 Balance wheels(dimension) mm Ø 115x55
3.5 Wheels, No. operator/load side (x=dirve wheel) mm 1x + 2/4

¢¹Ò´ÁÔµÔ Dimension
4.2 Height mast lowered h1(mm) 1980/2135/2335
4.4 Lift height h4(mm) 3000/3300/3600
4.5 Height mast extended h4(mm) 3500/3800/4100
4.9 Height of tiller arm in operating position min/max h14(mm) 1015/1450
4.10 Height of straddle arm h8(mm) 80
4.15 Fork height lowered h13(mm) 85
4.19 Over Length l1(mm) 1875
4.20 Length to face of fork l2(mm) 843
4.21 Overall width b1/b2(mm) 843
4.22 Fork dimension s/e/l (mm) 55/185/1150 or 1200
4.24 Fork carriage width b3 (mm) 700
4.25 Outside fork width, min/max b5 (mm) 550/600/650
4.26 Width between straddle arms b4(mm) 265/315/365
4.31 Ground clearance, below mast m1(mm) 30
4.32 Ground clearance, center of wheel base m2(mm) 30
4.33 Aisle width,1000x1200 pallet crossways Ast(mm) 2160
4.34 Aisle width,800x1200 pallet crossways Ast(mm) 2130
4.35 Outer turning radius Wa(mm) 1935/1525

»ÃÐÊÔ·¸ÔÀÒ¾ Performance
5.1 Travel speed, load/unload km/h 3-5 / 3-5
5.2 Lifting speed, load/unload m/s 0.13/0.23
5.3 Lowering speed, load/unload m/s 0.13/0.23
5.8 Max gradeability load/unload % 5/7
5.10 Service Brake Electromagnetic

ÁÍàµÍÃì drive
6.1 Drive motor ratting S2 60 min. kw 1.5
6.2 Lifting motor ratting S2 15% kw 3
6.4 Baterry Voltage/rated capacity (5h) V/Ah 24/210
6.5 Baterry weight (with box) kg 200
Baterry dimension l/w/h mm 650/200/575
Baterry type Industry

¢éÍÁÙÅÍ×è¹æ
8.1 type of drive control AC
Manufacturer CURTIS
8.4sound level at operator's ear dB(A) 70
8.6 Steering power steering
Warranty 1 Year

ÃÒÂÅÐàÍÕ´¼ÅÔµÀѳ±ìÍÒ¨ÁÕ¡ÒÃà»ÅÕè¹á»Å§â´ÂÁÔä´éá¨é§ãËé·ÃÒºÅèǧ˹éÒ
ö¡俿éÒ áººÂ×¹¢Ñº specification
