รถลากพาเลท ตาชั่งในตัว Pallet Truck Scale
รายละเอียดผลิตภัณฑ์อาจมีการเปลี่ยนแปลงโดยมิได้แจ้งให้ทราบล่วงหน้า
รายละเอียด
รถยกพาเลท แบบมี
Type A Equipped with top quality sensor and scale meter
Features weighing accuracy ±1kg in 2000kg. , 2500kg.
Rollers/Wheels: Nylon, Polyurethane

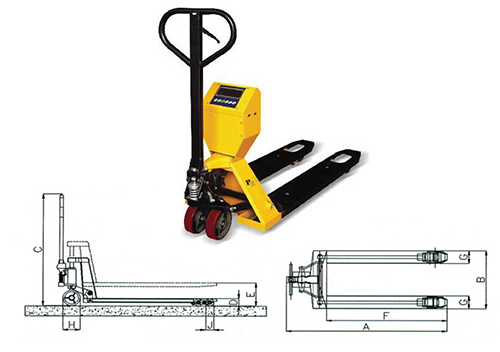

Technical Data | Model | ||||
HPW20 S | HPW20 L | HPW25 S | HPW25 L | ||
Printer | เป็นตัวเลือกเสริม | ||||
Capacity | Kg | 2000 | 2500 | ||
Overall Length | A mm | 1550 | |||
Width Over Fork | B mm | 555 | 690 | 555 | 690 |
Overall Height | C mm | 1220 | |||
Min.Fork Height | D mm | 85 | |||
Max Fork Height | E mm | 205 | |||
Fork Length | F mm | 1150 | |||
Individual Fork Width | G mm | 180 | |||
Steering Wheel Dia. | H mm | Ø 200 x 50 (Polyurethane , Nylon) | |||
Load Roller Diameter | J mm | Ø 80 x 70 (Polyurethane , Nylon) | |||
Net Weight | Kg | 131 | 134 | 137 | 140 |
Specification is subject to change without notice |

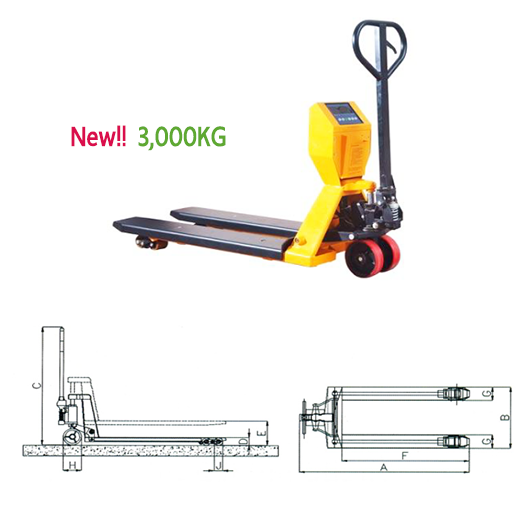

พิเศษ รุ่นใหม่ 3000kg
Technical Data | Model | |
HPW 30 | ||
Capacity | Kg | 3000 |
Overall Length | A mm | 1500 |
Width Over Fork | B mm | 600 |
Overall Height | C mm | 1220 |
Min.Fork Height | D mm | 85 |
Max Fork Height | E mm | 205 |
Fork Length | F mm | 1150 |
Individual Fork Width | G mm | 200 |
Steering Wheel Dia. | H mm | Ø 200 x 50 (Polyurethane , Nylon) |
Load Roller Diameter | J mm | Ø 80 x 70 (Polyurethane , Nylon) |
Net Weight | Kg | 165 |
Specification is subject to change without notice |
